Eckert & Ziegler Isotope Products Offers a Range of Multimodal Sources for Hybrid PET/CT and SPECT/CT Imaging
These sources can be used as fiducial markers to improve image coregistration in sequential scans with standalone scanners of different modalities, or for anatomical or position marking with visibility in both images of a hybrid scanner.

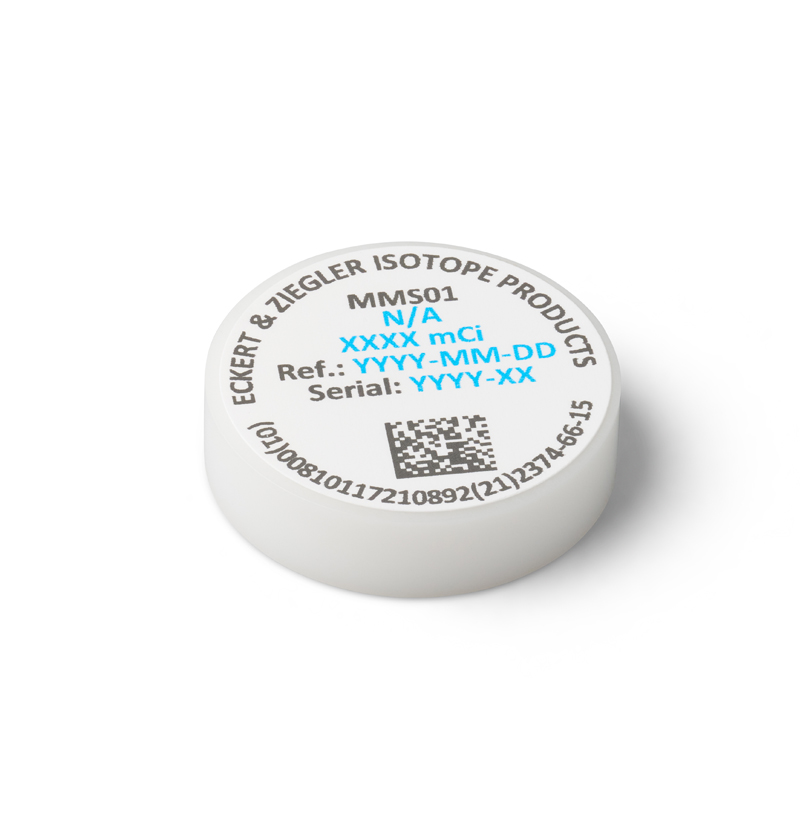

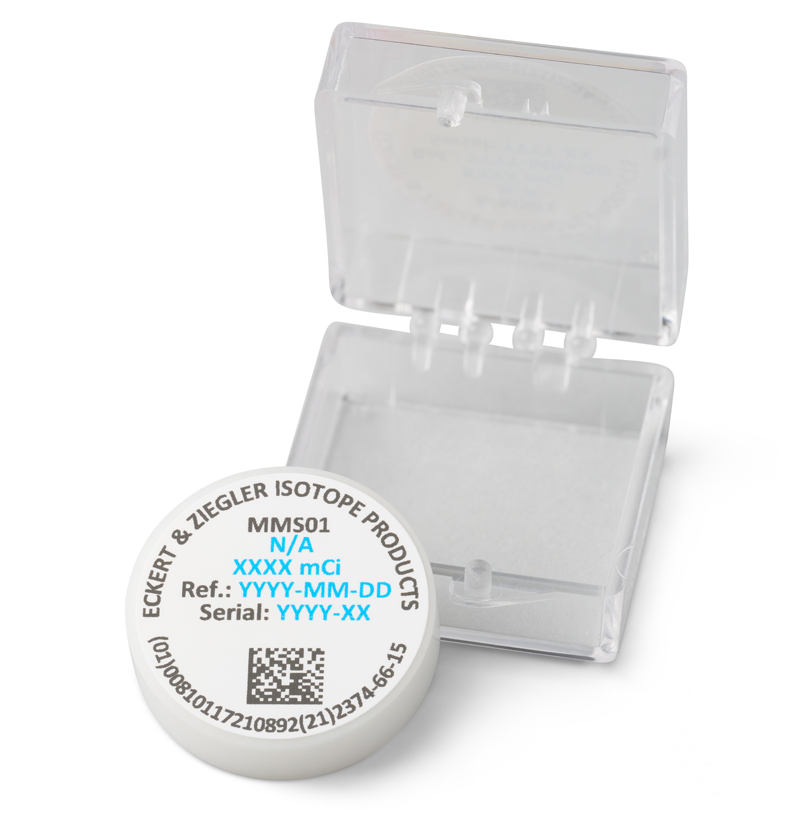

Model MMS01
Capsule: 1” x 0.25” (D x H) white Delrin
Active dimensions: 1mm x 1mm cylinder
Suggested usage: High-resolution PET point source or fiducial marker
Contact us today to learn more or order with one of our trained experts.

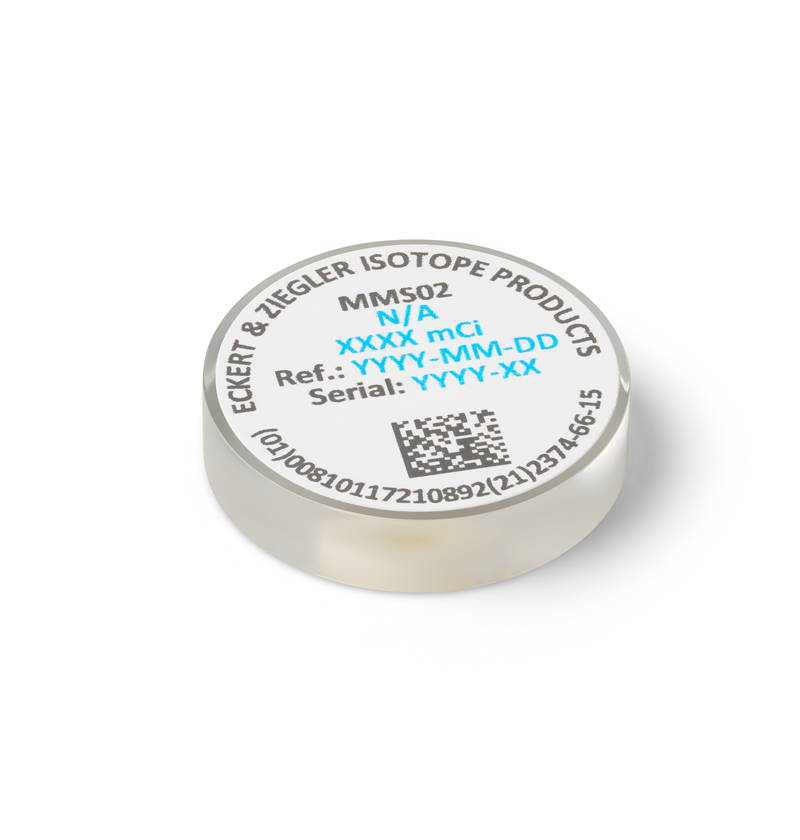

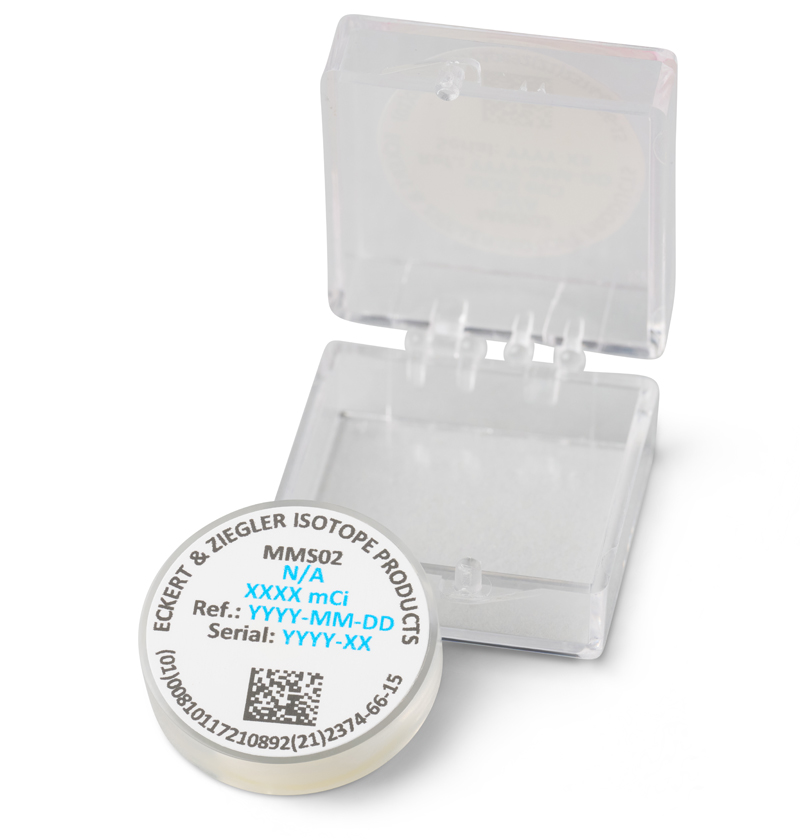

Model MMS02
Capsule: 1” x 0.25” (D x H) clear cast acrylic
Active dimensions: 1.5mm x 1.5mm cylinder
CT target: 1/4” OD bone-equivalent ring (surrounds active element)
Suggested usage: Multimodal fiducial marker for clinical image coregistration
Contact us today to learn more or order with one of our trained experts.

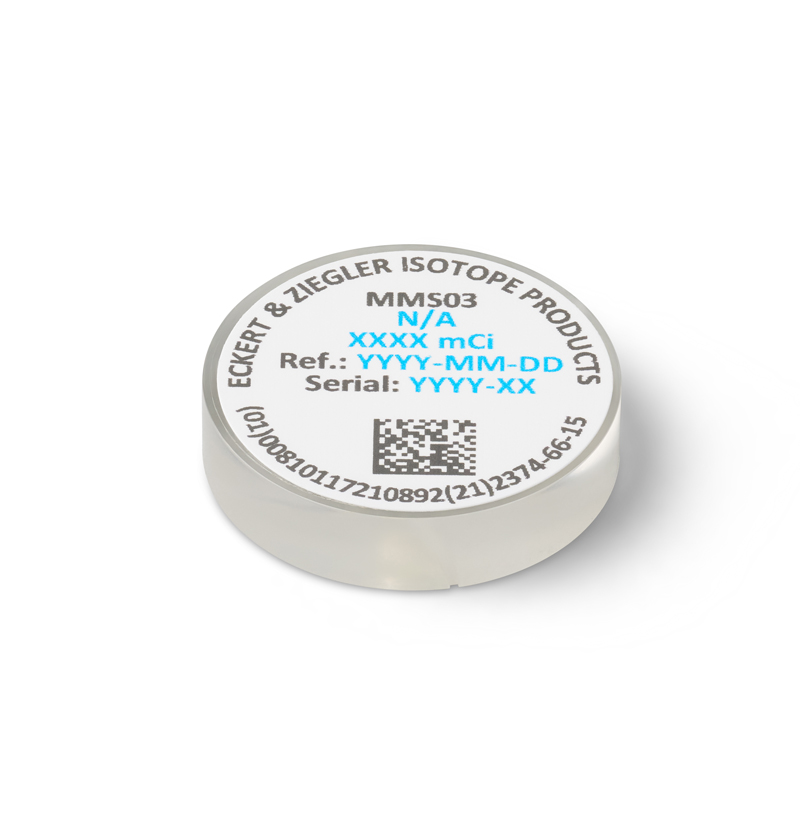

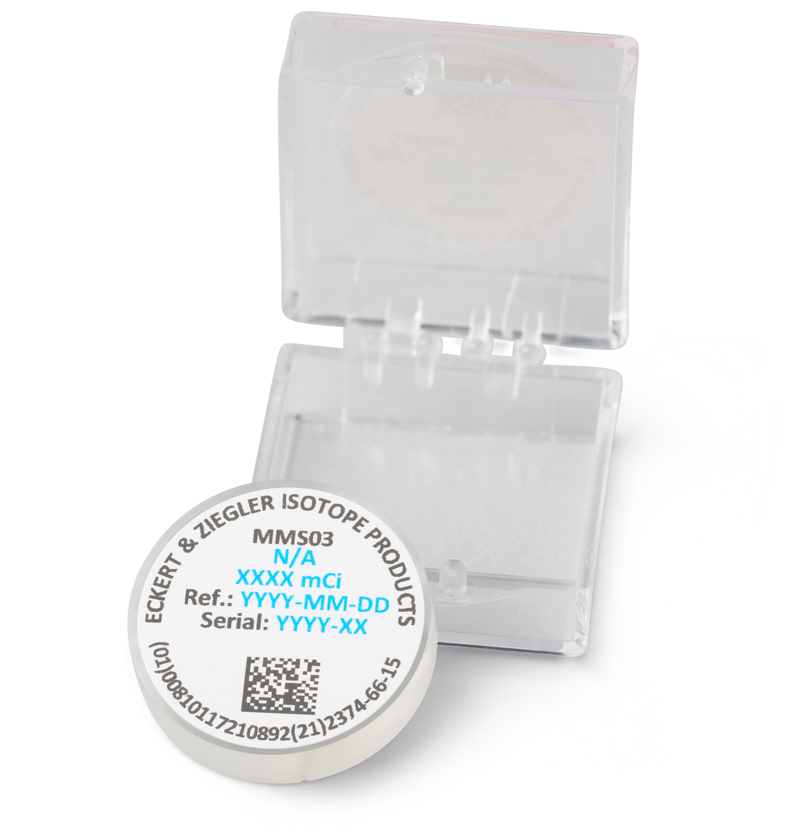

Model MMS03
Capsule: 1” x 0.25” (D x H) clear cast acrylic with etched crosshairs for laser alignment
Active dimensions: 1mm diameter sphere
CT target: 2mm OD bone-equivalent ring (surrounds active element)
Suggested usage: Multimodal fiducial marker for clinical image coregistration
Contact us today to learn more or order with one of our trained experts.

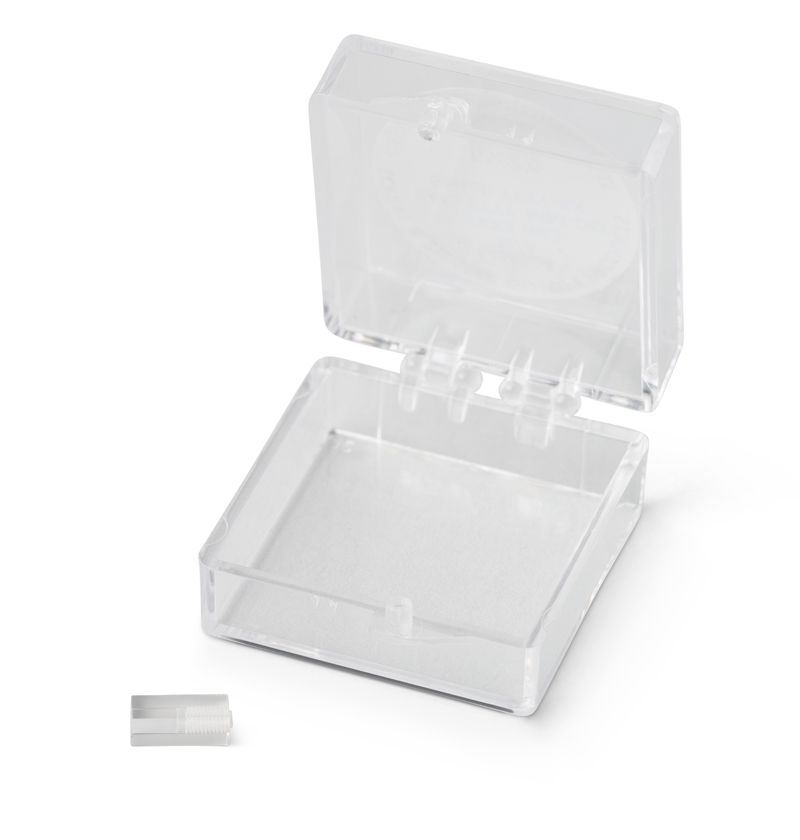

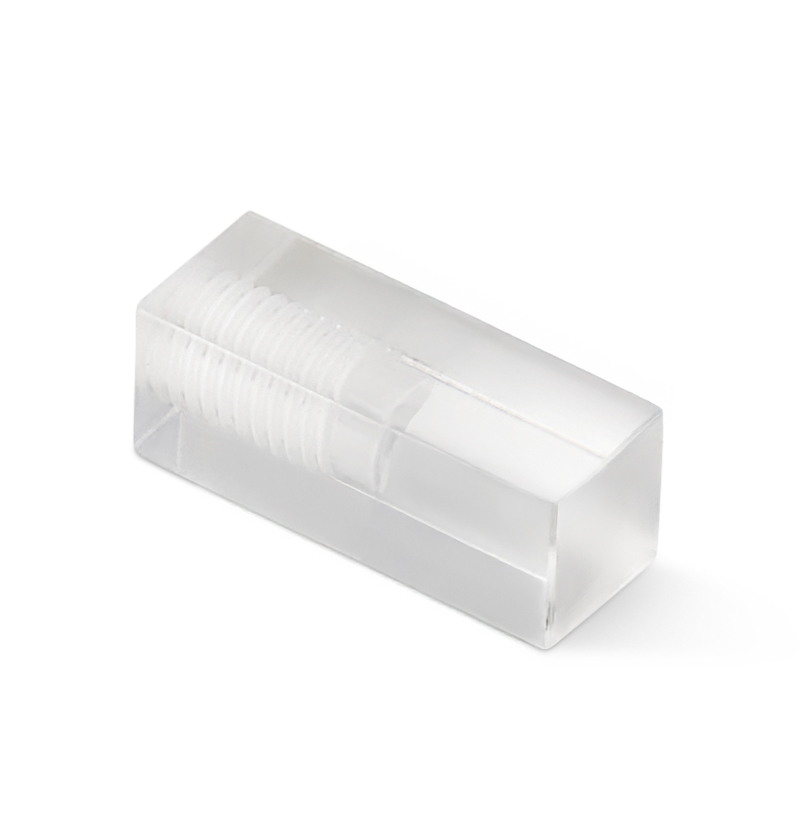

Model MMS04
Capsule: 3mm x 3mm x 8mm clear acrylic with Delrin plug
Active dimensions: 1mm x 0.5mm (D x H) cylinder
CT target: Active element is CT-visible
Suggested usage: Multimodal fiducial marker for image coregistration, recommended for small animal studies or other situations where a small source capsule is needed
Contact us today to learn more or order with one of our trained experts.

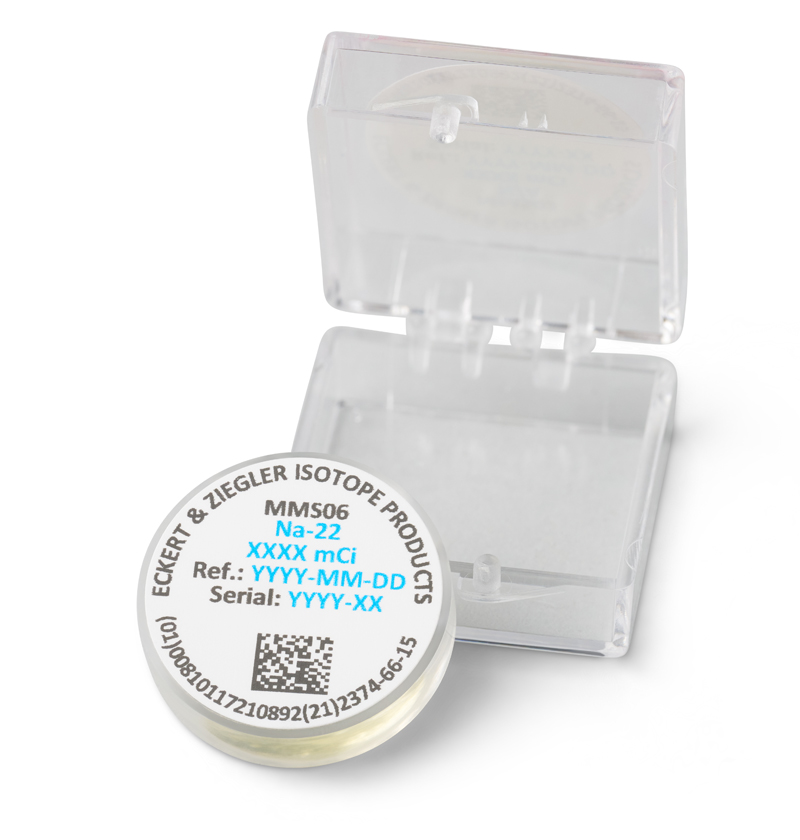

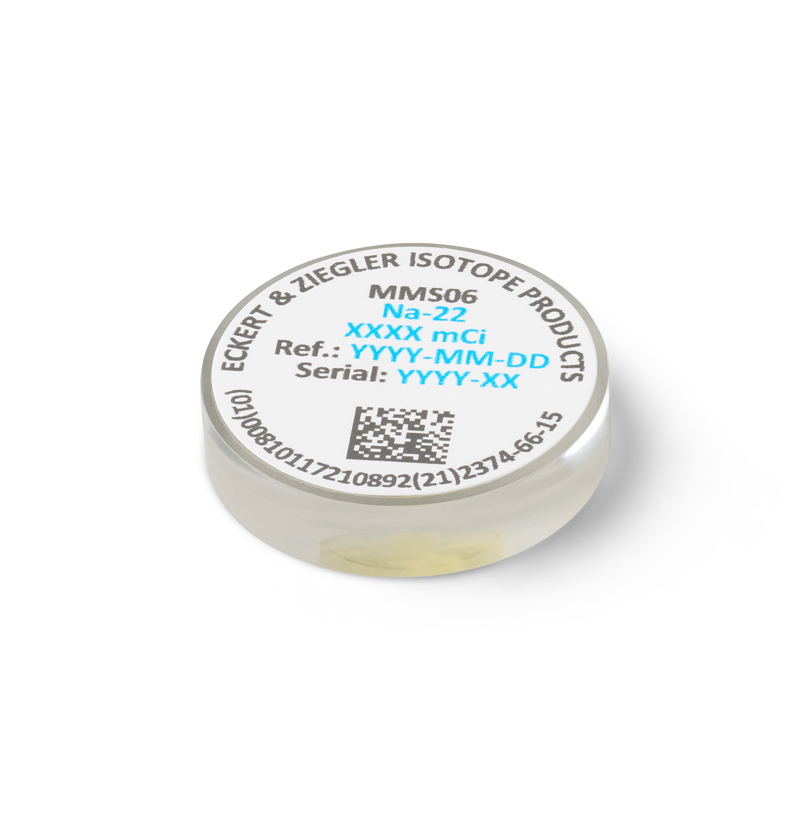

Model MMS06
Capsule: 1” x 0.25” (D x H) clear cast acrylic
Active dimensions: 0.25mm diameter sphere
Suggested usage: High-resolution point source or spot marker for use with scanners with resolution better than 3mm
Contact us today to learn more or order with one of our trained experts.

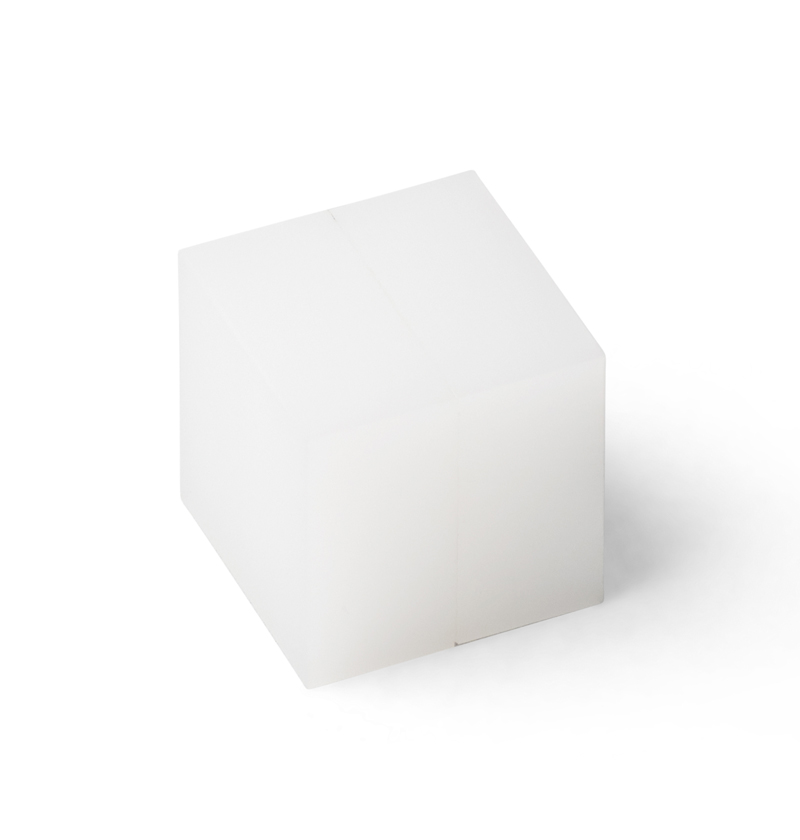

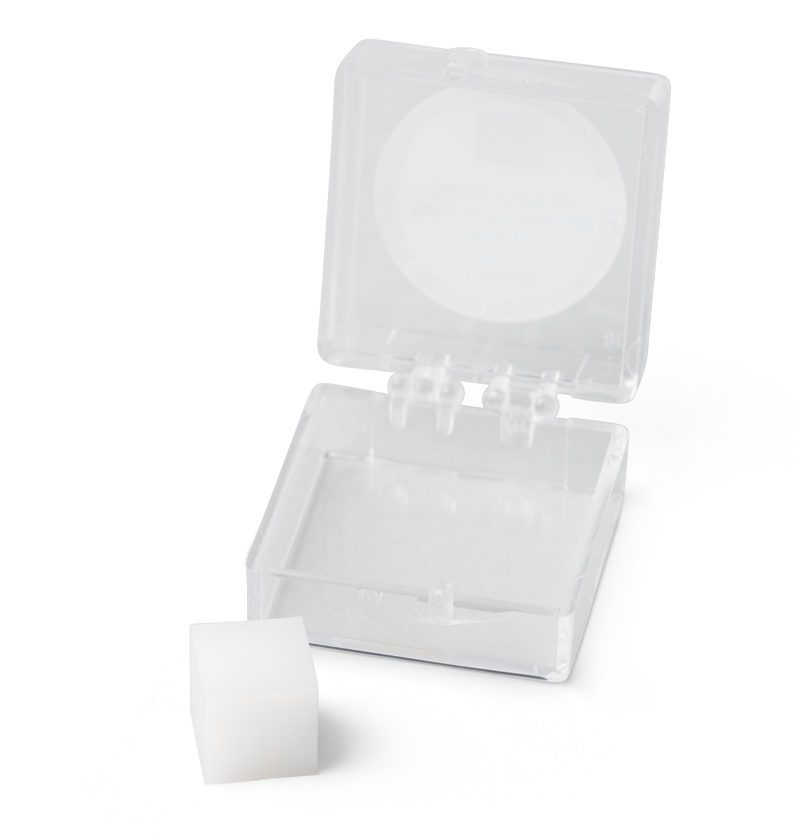

Model MMS09
Capsule: 1cm x 1cm x 1cm cast acrylic cube
Active dimensions: 0.25mm sphere centered in capsule
Suggested usage: NEMA NU4 resolution testing
Contact us today to learn more or order with one of our trained experts.

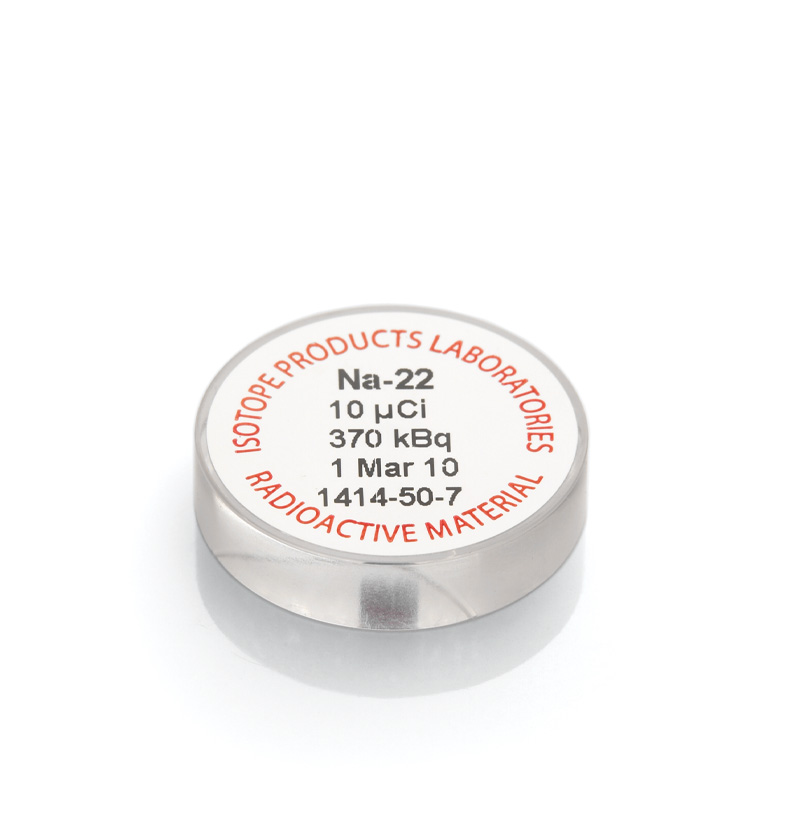

Model MMS10
Capsule: 0.5” (12.7mm) dia x 0.23” (5.8mm) thick cast acrylic
Active element: 0.315” (8mm) dia gel with CT contrast MR/CT/radionuclide trimodal fiducial marker
Suggested usage: For clinical imaging only: Not recommended for high-resolution preclinical scanners
Contact us today to learn more or order with one of our trained experts.
Model MMS11
Capsule: 0.157” (4mm) dia x 2.06” (52.3mm) long cast acrylic rod with threaded end
Active dimensions: 1mm dia x 0.5mm T
Nuclide: Na-22, 20 uCi (740 kBq)
Suggested usage: Dedicated source for Siemens Inveon Scanner
Contact us today to learn more or order with one of our trained experts.

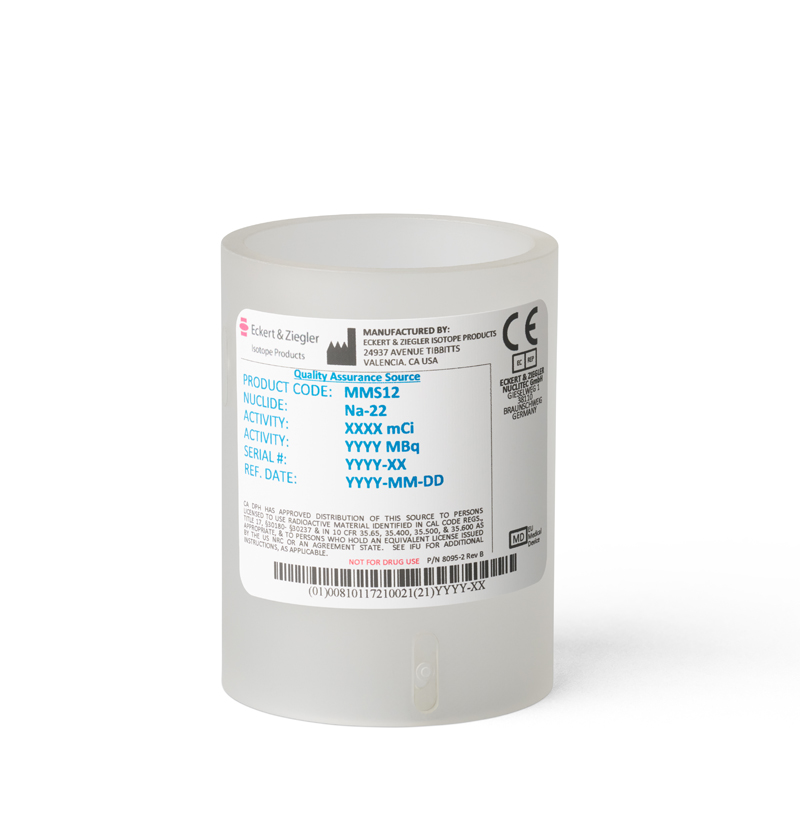

Model MMS12
Capsule: 1.75” OD x 2.36”L, polycarbonate hollow cylinder, with 4 imbedded point sources
Active dimensions: 0.5mm dia x 1mm thick point, 4 places
Suggested usage: Dedicated source for Siemens Inveon Scanner
Contact us today to learn more or order with one of our trained experts.

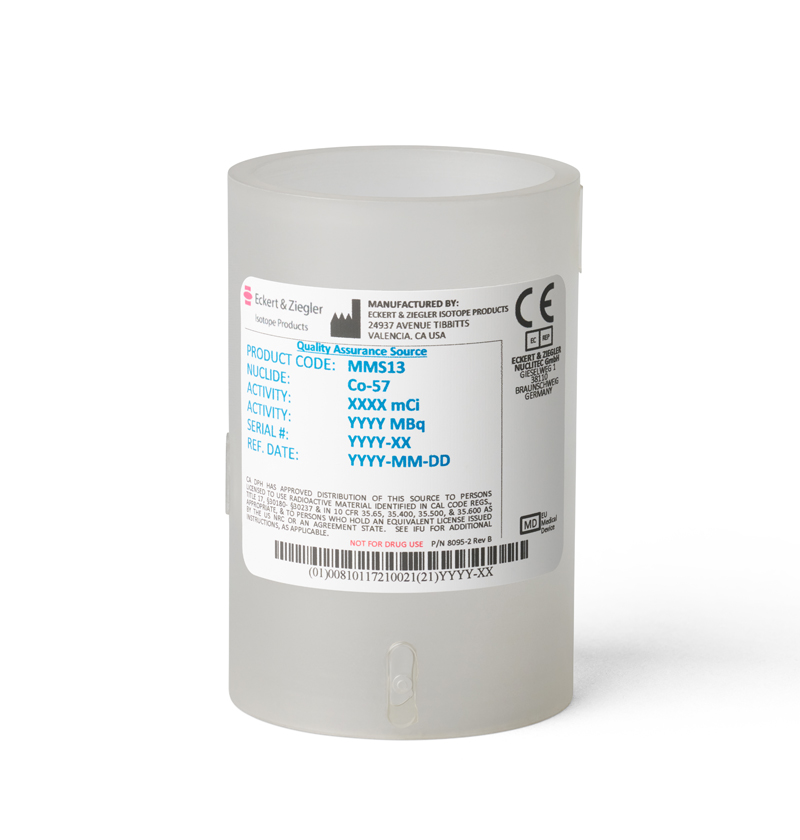

Model MMS13
Capsule: 1.75” OD x 2.36”L, polycarbonate hollow cylinder, with 4 imbedded point sources
Active dimensions: 0.5mm dia x 1mm thick point, 4 places
Suggested usage: Dedicated source for Siemens Inveon Scanner
Contact us today to learn more or order with one of our trained experts.

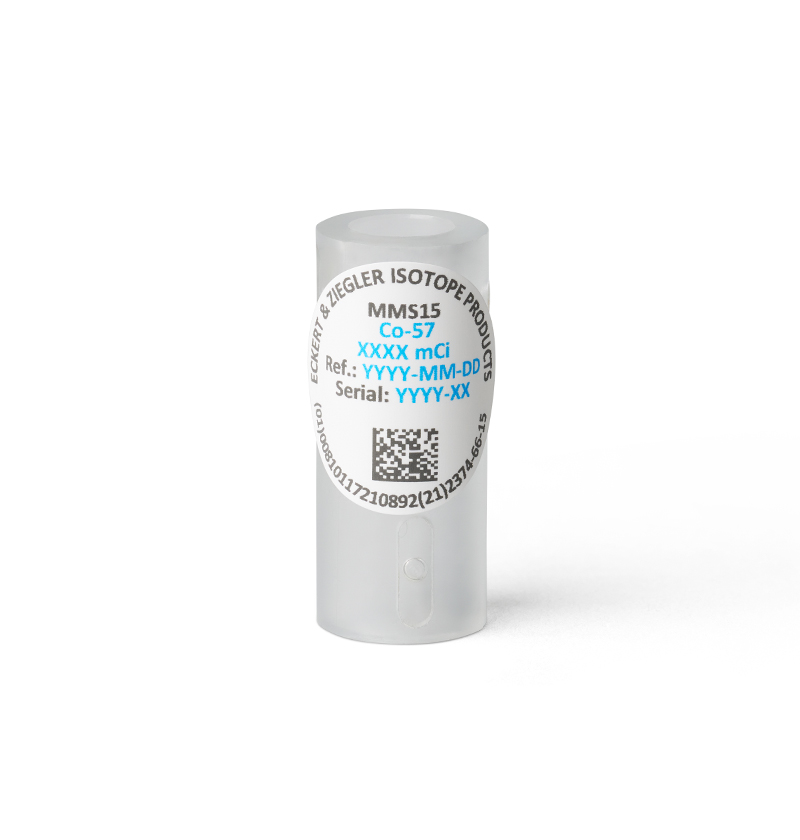

Model MMS15
Capsule: 0.63” OD x 1.49”L, polycarbonate hollow cylinder, with 4 imbedded point sources
Active dimensions: 0.5mm dia x 1mm thick point 4 places
Suggested usage: Dedicated source for Siemens Inveon Scanner
Contact us today to learn more or order with one of our trained experts.
